Whiskers in NWA 16100

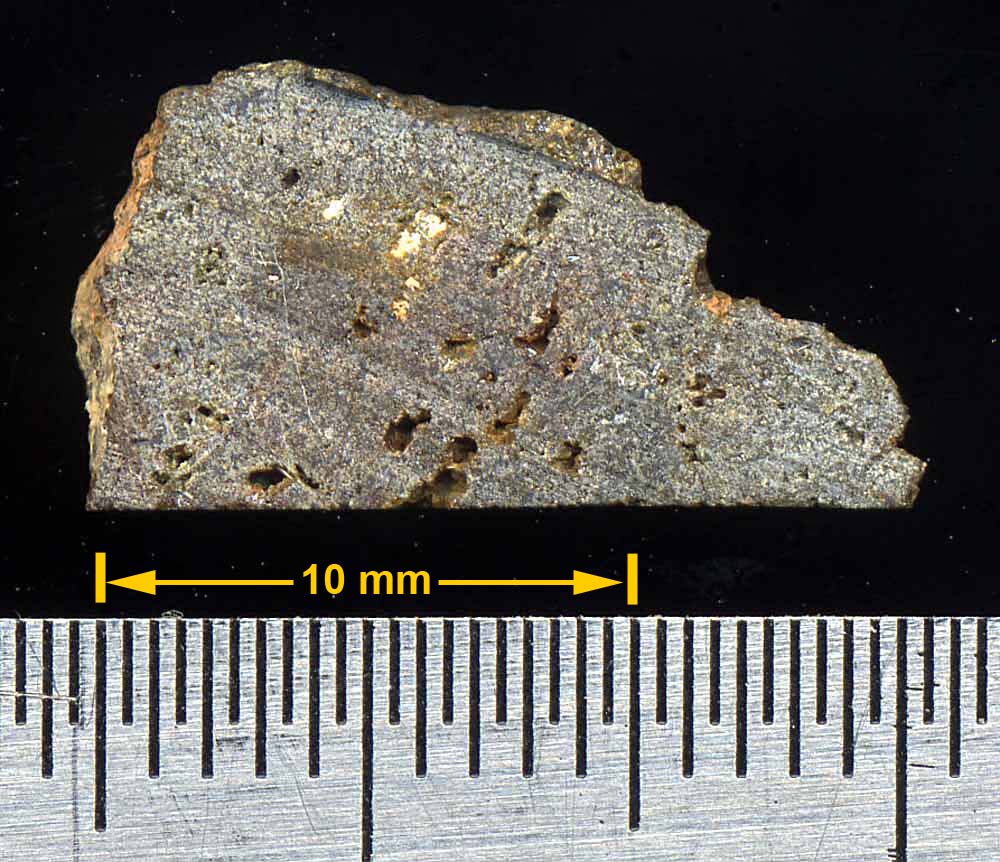

NWA 16100 was 1,922 grams, in three pieces, of olivine bearing diogenite-melt rock. It contains vesicles which are apparent in this cut fragment and whiskers that are easily seen in thin section under magnification.
This cut fragment was sourced from Jason Whitcomb of https://www.handfulofspace.com/

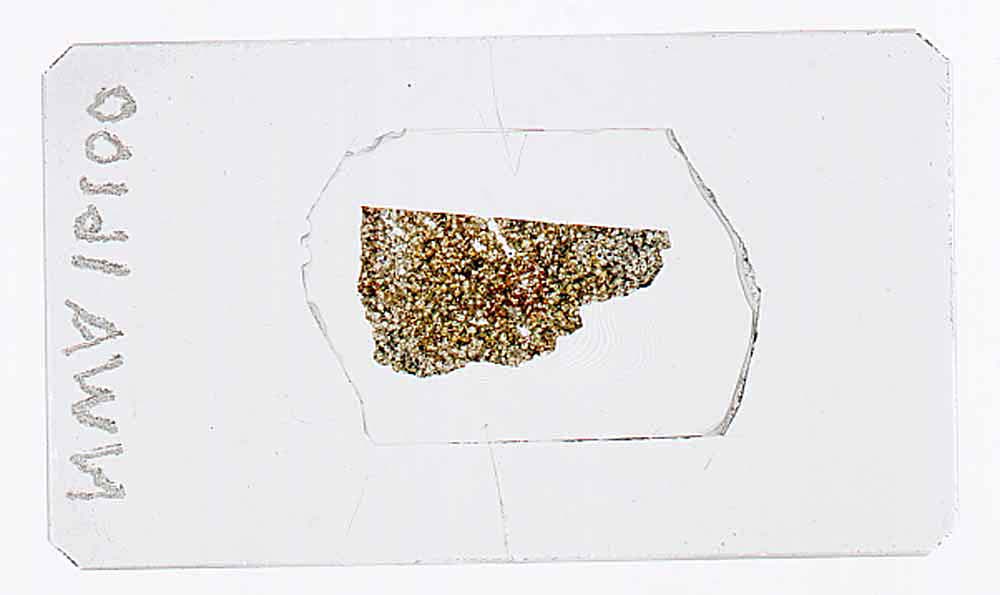

Our excellent thin section was made by Erik Karadeema https://high-mesa-petrographics.square.site/ It is a standard 27 x 46 mm size, “double polished” and not covered.






The melt rock is fine grained.






Top right corner in cross-polarized light (XPL). Field of view (FOV) is 3.1 mm wide.






This is the bright yellow grain above. Note the whiskers on the dark inclusions. FOV = 0.3mm. XPL






The whiskers are not of uniform width along their length. FOV=0.1mm. XPL






FOV=0.05mm. Plane polarized light (PPL)






We will look closer at the green elongated grain in the center. FOV=3.1mm. XPL






FOV=0.5mm. XPL






Whiskers are seen on the inclusions at lower left. One expert I asked about these hadn’t seen them before and, predictably, asked if they’d been microprobed. Not that I know of. Maybe someone should do a paper on them. FOV=0.4mm. PPL






Whiskers possibly align with the mineral grain’s crystal structure. FOV=0.2mm. PPL






Note the center grain with three dark inclusions. FOV=3.1mm. PPL






Whiskers often appear more robust in one direction than in the other. FOV=0.3mm. PPL






Whiskers do not all lie in the plane of the section surface. These start from the body of the inclusion near the top surface of the sample and extend downwardly at roughly 45 degrees. FOV=0.15mm. PPL






FOV=0.3mm. PPL






Robust whiskers aligned NW-SE. FOV=0.15mm. PPL.






FOV=0.3mm. PPL






FOV=0.3mm. PPL






FOV=0.3mm. XPL






FOV=0.075mm. XPL
